Docker

This guide provides an in-depth walkthrough for installing and configuring Traefik Proxy within a Docker container using the official Traefik Docker image & Docker Compose. In this guide, we'll cover the following:

• Enable the Docker provider
• Expose web (HTTP :80) and websecure (HTTPS :443) entrypoints
• Redirect all HTTP traffic to HTTPS
• Secure the Traefik dashboard with basic‑auth
• Terminate TLS with a self‑signed certificate for *.docker.localhost
• Deploy the whoami demo service
• Enable access‑logs and Prometheus metrics

Prerequisites¶

• Docker Desktop / Engine
• Docker Compose
• openssl
• htpasswd from apache2-utils

Create a self‑signed certificate¶

Before Traefik can serve HTTPS locally it needs a certificate. In production you’d use one from a trusted CA, but for a single‑machine stack a quick self‑signed cert is enough. We can create one with openssl by running the following commands:

mkdir -p certs
openssl req -x509 -nodes -days 365 -newkey rsa:2048 \
  -keyout certs/local.key -out certs/local.crt \
  -subj "/CN=*.docker.localhost"

The certs folder now holds local.crt and local.key, which will be mounted read‑only into Traefik.

Create the Traefik Dashboard Credentials¶

In production, it is advisable to have some form of authentication/security for the Traefik dashboard. Traefik can be secured with the basic‑auth middleware. To do this, generate a hashed username / password pair that Traefik’s middleware will validate:

htpasswd -nb admin "P@ssw0rd" | sed -e 's/\$/\$\$/g'

Copy the full output (e.g., admin:$$apr1$$…) — we'll need this for the middleware configuration.

Create a docker-compose.yaml¶

Now define the whole stack in a Compose file. This file declares Traefik, mounts the certificate, sets up a dedicated network, and later hosts the whoami demo service.

First, create a folder named dynamic and create a file named tls.yaml for dynamic configuration. Paste the TLS certificate configuration into the file:

tls:
  certificates:
    - certFile: /certs/local.crt
      keyFile:  /certs/local.key

In the same folder as the dynamic/tls.yaml file, create a docker-compose.yaml file and include the following:

services:
  traefik:
    image: traefik:v3.4
    container_name: traefik
    restart: unless-stopped
    security_opt:
      - no-new-privileges:true

    networks:
     # Connect to the 'traefik_proxy' overlay network for inter-container communication across nodes
      - proxy

    ports:
      - "80:80"
      - "443:443"
      - "8080:8080"

    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - ./certs:/certs:ro
      - ./dynamic:/dynamic:ro

    command:
      # EntryPoints
      - "--entrypoints.web.address=:80"
      - "--entrypoints.web.http.redirections.entrypoint.to=websecure"
      - "--entrypoints.web.http.redirections.entrypoint.scheme=https"
      - "--entrypoints.web.http.redirections.entrypoint.permanent=true"
      - "--entrypoints.websecure.address=:443"
      - "--entrypoints.websecure.http.tls=true"

      # Attach the static configuration tls.yaml file that contains the tls configuration settings
      - "--providers.file.filename=/dynamic/tls.yaml"

      # Providers
      - "--providers.docker=true"
      - "--providers.docker.exposedbydefault=false"
      - "--providers.docker.network=proxy"

      # API & Dashboard
      - "--api.dashboard=true"
      - "--api.insecure=false"

      # Observability
      - "--log.level=INFO"
      - "--accesslog=true"
      - "--metrics.prometheus=true"

  # Traefik Dynamic configuration via Docker labels
    labels:
      # Enable self‑routing
      - "traefik.enable=true"

      # Dashboard router
      - "traefik.http.routers.dashboard.rule=Host(`dashboard.docker.localhost`)"
      - "traefik.http.routers.dashboard.entrypoints=websecure"
      - "traefik.http.routers.dashboard.service=api@internal"
      - "traefik.http.routers.dashboard.tls=true"

      # Basic‑auth middleware
      - "traefik.http.middlewares.dashboard-auth.basicauth.users=<PASTE_HASH_HERE>"
      - "traefik.http.routers.dashboard.middlewares=dashboard-auth@docker"

# Whoami application
  whoami:
    image: traefik/whoami
    container_name: whoami
    restart: unless-stopped
    networks:
      - proxy
    labels:
      - "traefik.enable=true"
      - "traefik.http.routers.whoami.rule=Host(`whoami.docker.localhost`)"
      - "traefik.http.routers.whoami.entrypoints=websecure"
      - "traefik.http.routers.whoami.tls=true"

networks:
  proxy:
    name: proxy

Launch the stack¶

With the Compose file and supporting assets in place, start the containers and let Docker wire up networking behind the scenes:

docker compose up -d

Traefik will start, read its static configuration from the command arguments, connect to the Docker socket, detect its own labels for dynamic configuration (dashboard routing and auth), and begin listening on ports 80 and 443. HTTP requests will be redirected to HTTPS.

Access the Dashboard¶

Now that Traefik is deployed, you can access the dashboard at https://dashboard.docker.localhost and it should prompt for the Basic Authentication credentials you configured:

Test the whoami Application¶

You can test the application using curl:

curl -k https://whoami.docker.localhost/

Hostname: whoami-76c9859cfc-k7jzs
IP: 127.0.0.1
IP: ::1
IP: 10.42.0.59
IP: fe80::50d7:a2ff:fed5:2530
RemoteAddr: 10.42.0.60:54148
GET / HTTP/1.1
Host: whoami.docker.localhost
User-Agent: curl/8.7.1
Accept: */*
Accept-Encoding: gzip
X-Forwarded-For: 10.42.0.1
X-Forwarded-Host: whoami.docker.localhost
X-Forwarded-Port: 443
X-Forwarded-Proto: https
X-Forwarded-Server: traefik-644b7c67d9-f2tn9
X-Real-Ip: 10.42.0.1

Making the same request to the HTTP entrypoint will return the following:

curl -k http://whoami.docker.localhost

Moved Permanently

The above confirms that a redirection has taken place which means our setup works correctly.

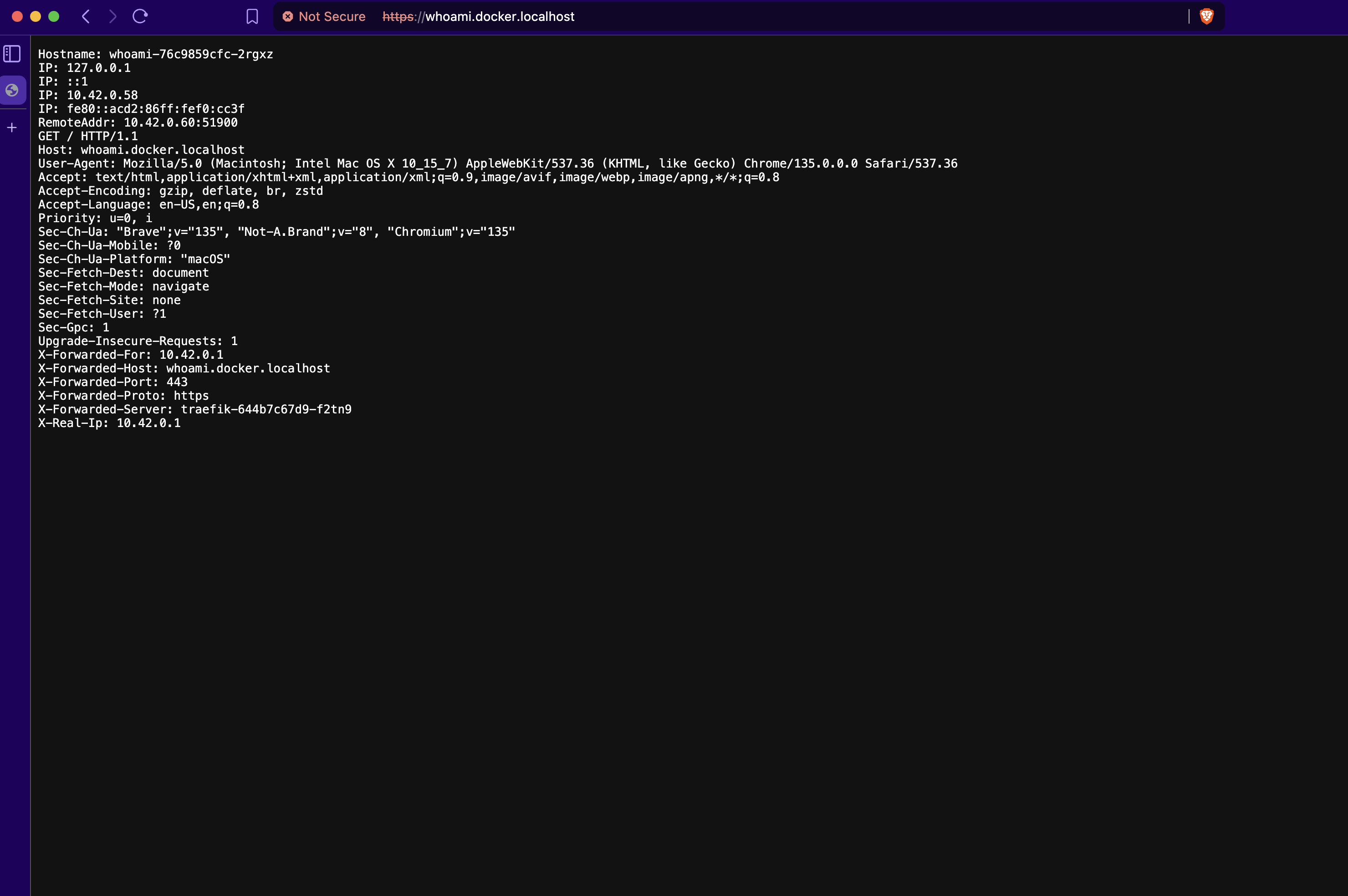

You can also open a browser and navigate to https://whoami.docker.localhost to see a JSON dump from the service:

Other Key Configuration Areas¶

Beyond this initial setup, Traefik offers extensive configuration possibilities. Here are brief introductions and minimal examples using Docker Compose command arguments or labels. Consult the main documentation linked for comprehensive details.

TLS Certificate Management (Let's Encrypt)¶

To make the websecure entry point serve valid HTTPS certificates automatically, enable Let's Encrypt (ACME).

Example command additions:

command:
  # ... other command arguments ...
  - "[email protected]"
  - "--certificatesresolvers.le.acme.storage=/letsencrypt/acme.json" # Path inside container volume
  - "--certificatesresolvers.le.acme.httpchallenge.entrypoint=web"

  # - "--certificatesresolvers.le.acme.dnschallenge.provider=your-dns-provider" # Needs provider setup

  # Optionally make 'le' the default resolver for TLS-enabled routers
  - "--entrypoints.websecure.http.tls.certresolver=le"

This defines a resolver named le, sets the required email and storage path (within the mounted /letsencrypt volume), and enables the HTTP challenge. Refer to the HTTPS/TLS Documentation and Let's Encrypt Documentation for details on challenges and DNS provider configuration.

Metrics (Prometheus)¶

You can expose Traefik's internal metrics for monitoring with Prometheus. We already enabled prometheus in our setup but we can further configure it. Example command additions:

command:
  # If using a dedicated metrics entry point, define it:
  - "--entrypoints.metrics.address=:8082"

  # ... other command arguments ...
  - "--metrics.prometheus=true"

  # Optionally change the entry point metrics are exposed on (defaults to 'traefik')
  - "--metrics.prometheus.entrypoint=metrics"

  # Add labels to metrics for routers/services (can increase cardinality)
  - "--metrics.prometheus.addrouterslabels=true"
  - "--metrics.prometheus.addserviceslabels=true"

This enables the /metrics endpoint (typically accessed via the internal API port, often 8080 by default if not secured, or via a dedicated entry point). See the Metrics Documentation for options.

Tracing (OTel):¶

You can enable distributed tracing to follow requests through Traefik. Example command additions:

command:
  # ... other command arguments ...
  - "--tracing.otel=true"
  - "--tracing.otel.grpcendpoint=otel-collector:4317" # Adjust endpoint as needed
  - "--tracing.otel.httpendpoint=otel-collector.observability:4318" # Adjust endpoint as needed

Access Logs¶

You can configure Traefik to log incoming requests for debugging and analysis. Example command additions:

command:
  # ... other command arguments ...
  - "--accesslog=true" # Enable access logs to stdout

  # Optionally change format or output file (requires volume)
  - "--accesslog.format=json"
  - "--accesslog.filepath=/path/to/access.log"

  # Optionally filter logs
  - "--accesslog.filters.statuscodes=400-599"

This enables access logs to the container's standard output (viewable via docker compose logs <traefik-container-id>). See the Access Logs Documentation.

Conclusion¶

You now have a basic Traefik setup in Docker with secure dashboard access and HTTP-to-HTTPS redirection.
