Getting Started with Kubernetes and Traefik¶

Kubernetes is a first-class citizen in Traefik, offering native support for Kubernetes resources and the latest Kubernetes standards. Whether you're using Traefik's IngressRoute CRD, Ingress or the Kubernetes Gateway API, Traefik provides a seamless experience for managing your Kubernetes traffic.

This guide shows you how to:

Create a Kubernetes cluster using k3d
Install Traefik using Helm
Expose the Traefik dashboard
Deploy a sample application
Configure basic routing with IngressRoute and Gateway API

Prerequisites¶

Kubernetes
Helm 3
kubectl
k3d (for local cluster creation)

Create a Kubernetes Cluster¶

Using k3d¶

Create a cluster with the following command. This command:

Creates a k3d cluster named "traefik"
Maps ports 80, 443, and 8000 to the loadbalancer for accessing services
Disables the built-in Traefik ingress controller to avoid conflicts

k3d cluster create traefik \
  --port 80:80@loadbalancer \
  --port 443:443@loadbalancer \
  --port 8000:8000@loadbalancer \
  --k3s-arg "--disable=traefik@server:0"

Configure kubectl:

kubectl cluster-info --context k3d-traefik

Install Traefik¶

Using Helm Values File¶

Add the Traefik Helm repository:

helm repo add traefik https://traefik.github.io/charts
helm repo update

Create a values file. This configuration:

Maps ports 80 and 443 to the web and websecure entrypoints
Enables the dashboard with a specific hostname rule
Enables the Kubernetes Gateway API provider
Allows the Gateway to expose HTTPRoutes from all namespaces

# values.yaml
ingressRoute:
  dashboard:
    enabled: true
    matchRule: Host(`dashboard.localhost`)
    entryPoints:
      - web
providers:
  kubernetesGateway:
    enabled: true
gateway:
  namespacePolicy: All

Info

The KubernetesCRD provider is enabled by default when using the Helm chart so we don't need to set it in the values file.

Install Traefik:

helm install traefik traefik/traefik -f values.yaml --wait

Using Helm CLI Arguments¶

Alternatively, you can install Traefik using CLI arguments. This command:

Maps ports 30000 and 30001 to the web and websecure entrypoints
Enables the dashboard with a specific hostname rule
Enables the Kubernetes Gateway API provider
Allows the Gateway to expose HTTPRoutes from all namespaces

helm install traefik traefik/traefik --wait \
  --set ingressRoute.dashboard.enabled=true \
  --set ingressRoute.dashboard.matchRule='Host(`dashboard.localhost`)' \
  --set ingressRoute.dashboard.entryPoints={web} \
  --set providers.kubernetesGateway.enabled=true \
  --set gateway.namespacePolicy=All

Info

The KubernetesCRD provider is enabled by default when using the Helm chart so we don't need to set it in the CLI arguments.

When Traefik is installed with the Gateway API provider enabled, it automatically creates a default GatewayClass named traefik:

kubectl describe GatewayClass traefik

Expose the Dashboard¶

The dashboard is exposed with an IngressRoute provided by the Chart, as we defined in the helm values during installation.

Access it at:

http://dashboard.localhost/dashboard/

Traefik Dashboard Screenshot

Deploy a Sample Application¶

Create a deployment:

# whoami.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: whoami
spec:
  replicas: 2
  selector:
    matchLabels:
      app: whoami
  template:
    metadata:
      labels:
        app: whoami
    spec:
      containers:
        - name: whoami
          image: traefik/whoami
          ports:
            - containerPort: 80

Create a service:

# whoami-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: whoami
spec:
  ports:
    - port: 80
  selector:
    app: whoami

Apply the manifests:

kubectl apply -f whoami.yaml
kubectl apply -f whoami-service.yaml

Exposing the Application Using an IngressRoute (CRD)¶

Create an IngressRoute:

# whoami-ingressroute.yaml
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: whoami
spec:
  entryPoints:
    - web
  routes:
    - match: Host(`whoami.localhost`)
      kind: Rule
      services:
        - name: whoami
          port: 80

Apply the manifest:

kubectl apply -f whoami-ingressroute.yaml

Test Your Setup¶

You can use the following curl command to verify that the application is correctly exposed:

curl http://whoami.localhost

Hostname: whoami-76c9859cfc-6v8hh
IP: 127.0.0.1
IP: ::1
IP: 10.42.0.11
IP: fe80::20ad:eeff:fe44:a63
RemoteAddr: 10.42.0.9:38280
GET / HTTP/1.1
Host: whoami.localhost
User-Agent: curl/8.7.1
Accept: */*
Accept-Encoding: gzip
X-Forwarded-For: 127.0.0.1
X-Forwarded-Host: whoami.localhost
X-Forwarded-Port: 80
X-Forwarded-Proto: http
X-Forwarded-Server: traefik-598946cd7-zds59
X-Real-Ip: 127.0.0.1

You can also visit http://whoami.localhost in a browser to verify that the application is exposed correctly:

whoami application Screenshot

Exposing the Application Using the Gateway API¶

Traefik supports the Kubernetes Gateway API specification, which provides a more standardized way to configure ingress in Kubernetes. When we installed Traefik earlier, we enabled the Gateway API provider. You can verify this in the providers section of the Traefik dashboard.

Providers Section Screenshot

To use the Gateway API:

Install the Gateway API CRDs in your cluster:

kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.2.1/standard-install.yaml

Create an HTTPRoute. This configuration:

Creates an HTTPRoute named "whoami"
Attaches it to the default Gateway that Traefik created during installation
Configures routing for the hostname "whoami-gatewayapi.localhost"
Routes all traffic to the whoami service on port 80

# httproute.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: whoami
spec:
  parentRefs:
    - name: traefik-gateway
  hostnames:
    - "whoami-gatewayapi.localhost"
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /
      backendRefs:
        - name: whoami
          port: 80

Apply the manifest:

kubectl apply -f httproute.yaml

Test Your Setup¶

You can use the following curl command to verify that the application is correctly exposed:

curl http://whoami-gatewayapi.localhost

Hostname: whoami-76c9859cfc-6v8hh
IP: 127.0.0.1
IP: ::1
IP: 10.42.0.11
IP: fe80::20ad:eeff:fe44:a63
RemoteAddr: 10.42.0.9:38280
GET / HTTP/1.1
Host: whoami.localhost
User-Agent: curl/8.7.1
Accept: */*
Accept-Encoding: gzip
X-Forwarded-For: 127.0.0.1
X-Forwarded-Host: whoami.localhost
X-Forwarded-Port: 80
X-Forwarded-Proto: http
X-Forwarded-Server: traefik-598946cd7-zds59
X-Real-Ip: 127.0.0.1

You can now visit http://whoami.localhost in your browser to verify that the application is exposed correctly:

whoami application Screenshot

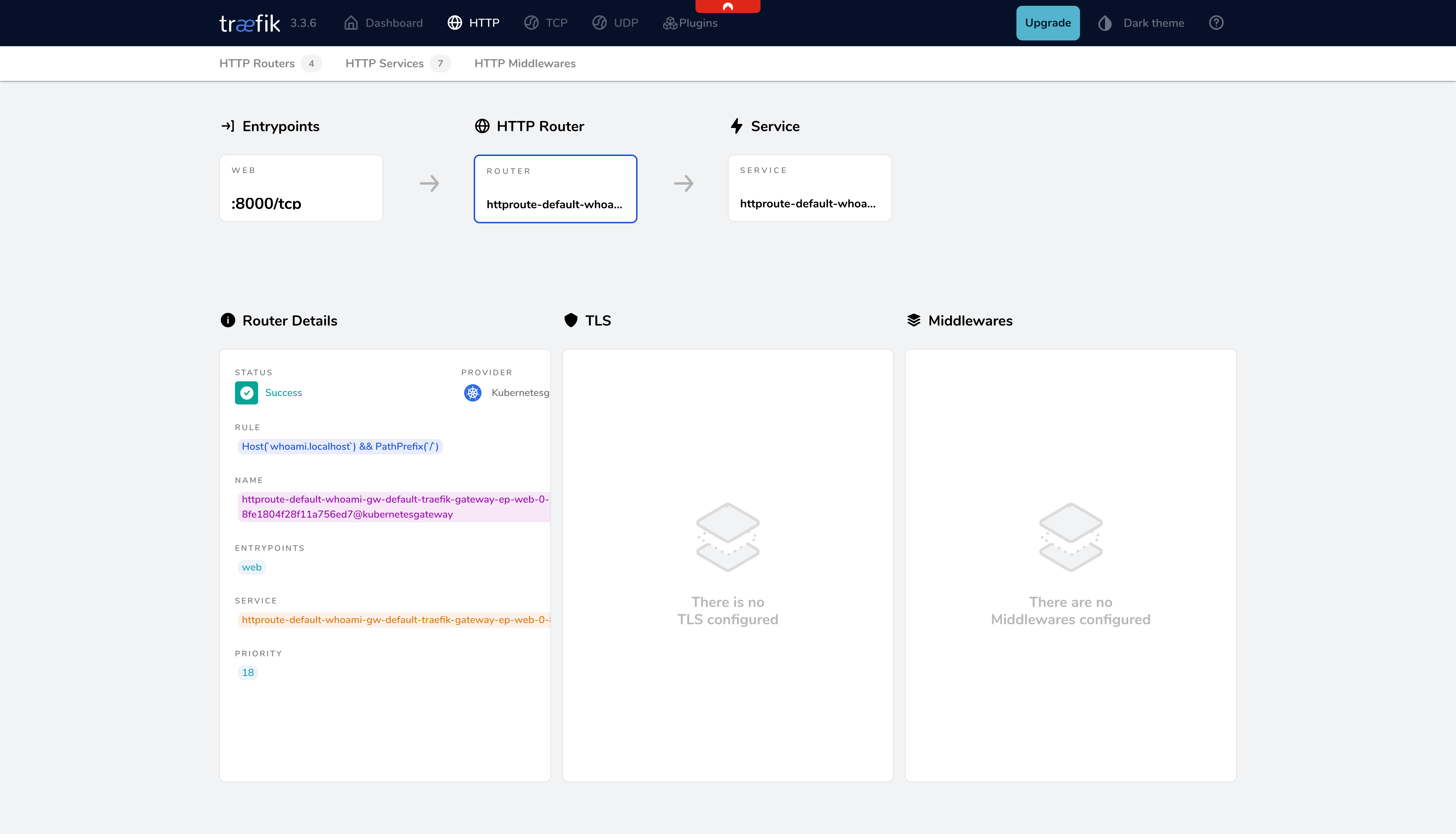

If you navigate to the HTTP Routes section of the traefik dashboard, you can see that the whoami.localhost route is managed by the Traefik Kubernetes Gateway API provider:

Traefik Dashboard HTTP Routes Section Screenshot

That's it! You've successfully deployed Traefik and configured routing in a Kubernetes cluster.
